Understanding the Flat Type Rupture Disc: Essential for Pressure Relief and Safety

Posted on: Dec-20-2024
Understanding The Importance Of Rupture Disc – A Pressure Relief Safety Device

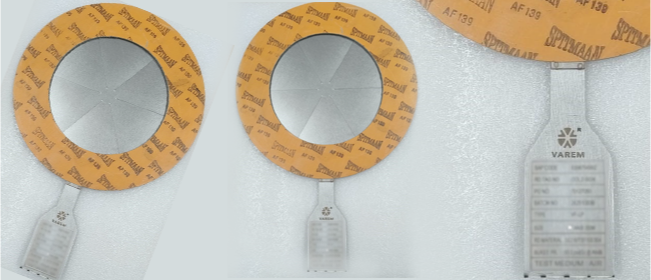

A Flat Type Rupture Disc is a type of pressure relief device commonly used in industries to protect vessels, piping, or equipment from overpressure. This is a Flat type Rupture Disc where the OP/BP ratio is less than 55%. When a certain pressure threshold is exceeded, the disc bursts to release the pressure, preventing potential damage to equipment or danger to personnel. size vary from 1 " to 40 "

The VFLP model refers to a specific design of the rupture disc, indicating certain features and construction details that can vary between manufacturers. However, the typical characteristics of a flat-type rupture disc, especially one referred to by the VFLP model, would likely include:

Key Features:

  • 1. Flat Construction:
    • The disc has a flat profile, meaning it is typically a flat, circular membrane, designed to burst when the internal pressure exceeds a set point. This is in contrast to domed or other shapes.
  • 2. Material:
    • These rupture discs are typically made from high-quality materials like stainless steel, Hastelloy, or Inconel, in combination with Teflon, PFA, and FEP. This type is generally composite material.
  • 3. Pressure Sensitivity:
    • The rupture disc is designed to burst at a precise pressure. This is often selected based on the operating conditions of the equipment it's protecting. It is engineered to provide a reliable opening when the system's pressure reaches a critical point, ensuring that the pressure doesn't exceed safety limits.
  • 4. Non-reclosing:
    • Once the rupture disc has burst, it does not reseal. The disc must be replaced after each activation, unlike other types of pressure relief valves that can reseat after relieving pressure.

Applications:

  • Process industries: Oil & gas, chemicals, pharmaceuticals, food & beverage, and other sectors that require overpressure protection.
  • Tanks and Pressure Vessels: Protection for vessels that store or process gases or liquids under pressure.
  • Piping systems: Used in pipelines where excessive pressure could lead to rupture or failure.

Advantages of Flat Type Rupture Discs:

  • Simplicity: Can be mounted without safety holders. i.e., it can be mounted between the ANSI flanges.
  • Cost-Effective: Generally, rupture discs are a more affordable option compared to pressure relief valves, especially in applications where reset/reuse is not needed.
  • Compact: The flat design can be compact and fit into small spaces or installations.

Disadvantages:

  • One-Time Use: Once activated, rupture discs must be replaced, which can increase maintenance time and costs in some settings.
